DB11/T 1944-2021 市政基础设施工程暗挖施工安全技术规程

UG

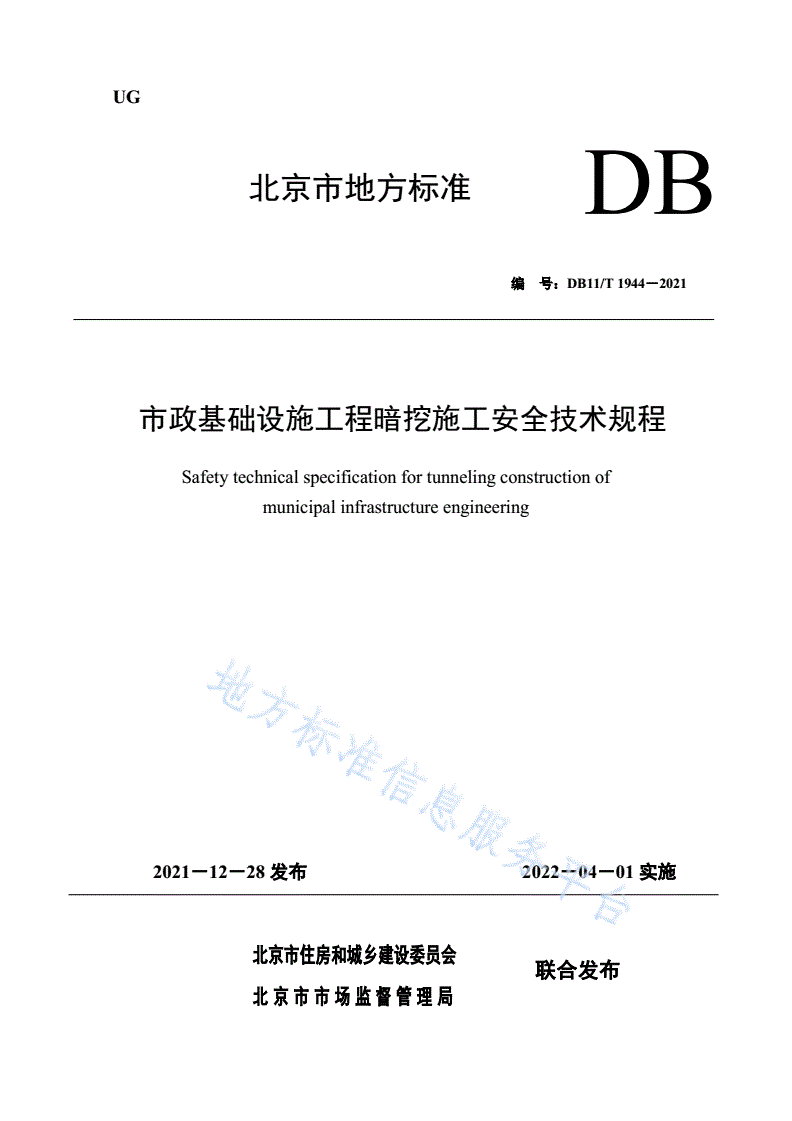

北京市地方标准DB

编号：DB11/T1944－2021

市政基础设施工程暗挖施工安全技术规程

Safetytechnicalspecificationfortunnelingconstructionof

municipalinfrastructureengineering

2021－12－28发布2022－04－01实施

北京市住房和城乡建设委员会

联合发布

北京市市场监督管理局

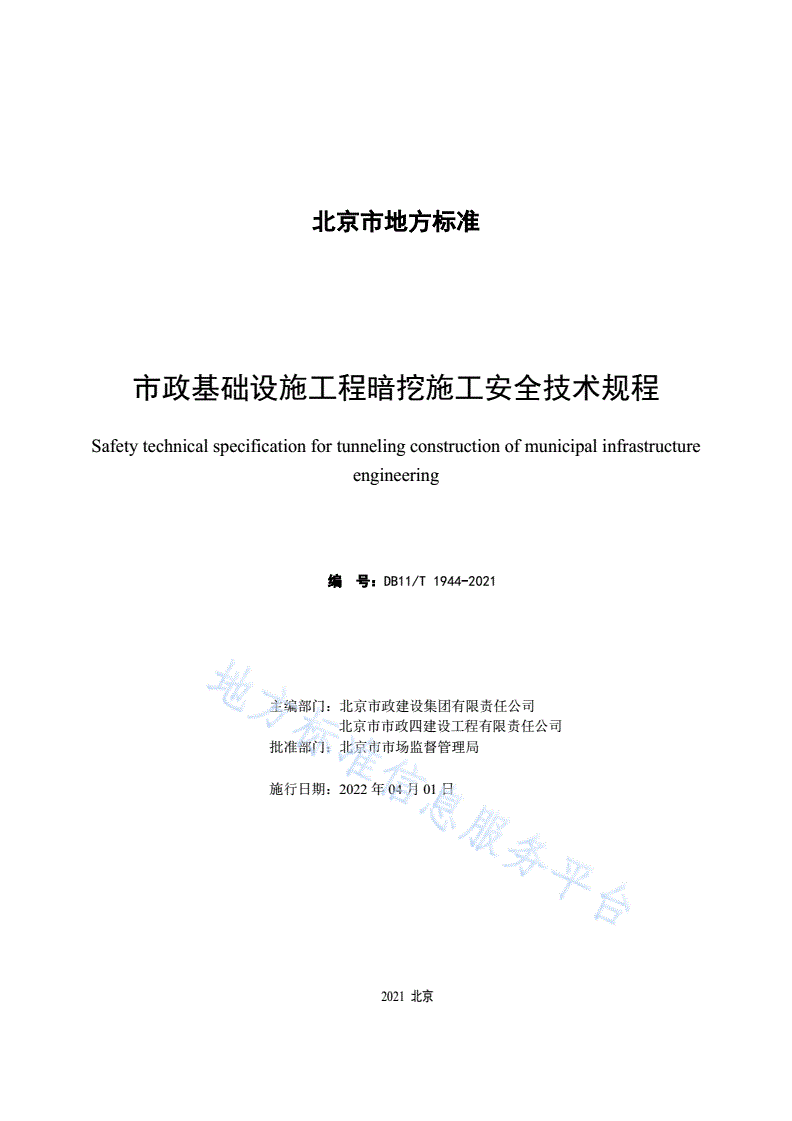

北京市地方标准

市政基础设施工程暗挖施工安全技术规程

Safetytechnicalspecificationfortunnelingconstructionofmunicipalinfrastructure

engineering

编号：DB11/T1944-2021

主编部门：北京市政建设集团有限责任公司

北京市市政四建设工程有限责任公司

批准部门：北京市市场监督管理局

施行日期：2022年04月01日

2021北京

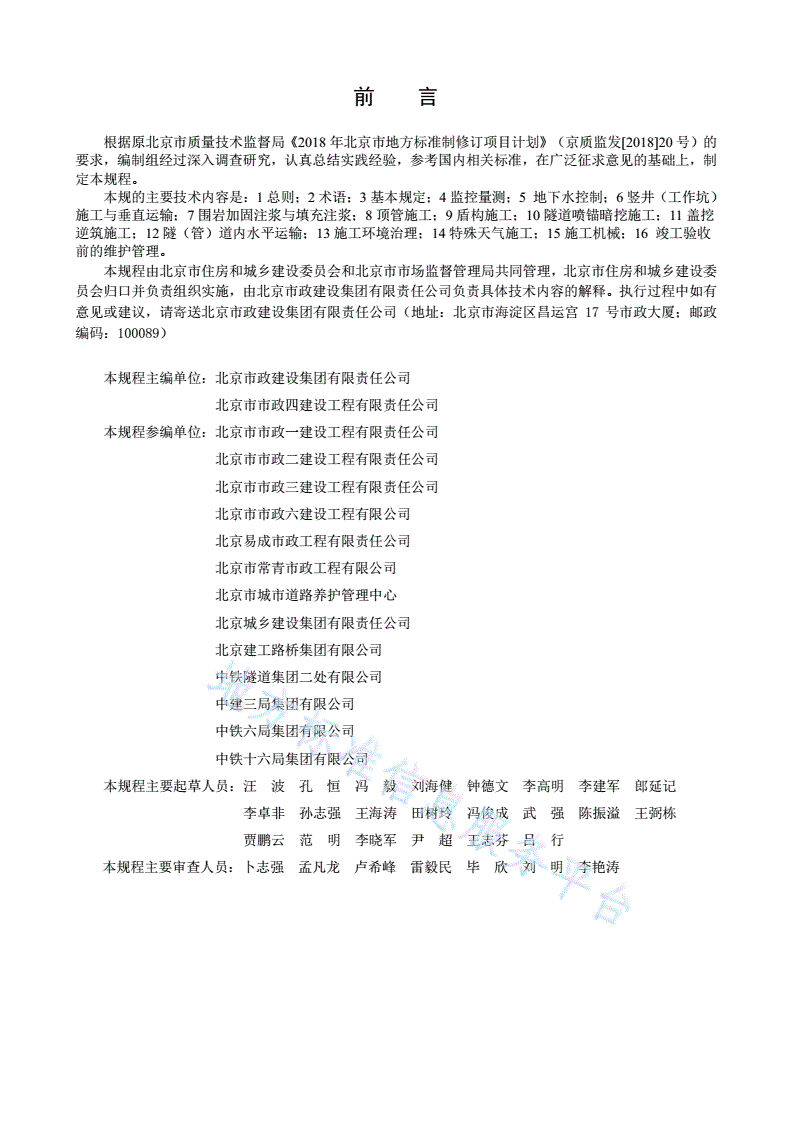

前言

根据原北京市质量技术监督局《2018年北京市地方标准制修订项目计划》（京质监发[2018]20号）的

要求，编制组经过深入调查研究，认真总结实践经验，参考国内相关标准，在广泛征求意见的基础上，制

定本规程。

本规的主要技术内容是：1总则；2术语；3基本规定；4监控量测；5地下水控制；6竖井（工作坑）

施工与垂直运输；7围岩加固注浆与填充注浆；8顶管施工；9盾构施工；10隧道喷锚暗挖施工；11盖挖

逆筑施工；12隧（管）道内水平运输；13施工环境治理；14特殊天气施工；15施工机械；16竣工验收

前的维护管理。

本规程由北京市住房和城乡建设委员会和北京市市场监督管理局共同管理，北京市住房和城乡建设委

员会归口并负责组织实施，由北京市政建设集团有限责任公司负责具体技术内容的解释。执行过程中如有

意见或建议，请寄送北京市政建设集团有限责任公司（地址：北京市海淀区昌运宫17号市政大厦；邮政

编码：100089）

本规程主编单位：北京市政建设集团有限责任公司

北京市市政四建设工程有限责任公司

本规程参编单位：北京市市政一建设工程有限责任公司

北京市市政二建设工程有限责任公司

北京市市政三建设工程有限责任公司

北京市市政六建设工程有限公司

北京易成市政工程有限责任公司

北京市常青市政工程有限公司

北京市城市道路养护管理中心

北京城乡建设集团有限责任公司

北京建工路桥集团有限公司

中铁隧道集团二处有限公司

中建三局集团有限公司

中铁六局集团有限公司

中铁十六局集团有限公司

本规程主要起草人员：汪波孔恒冯毅刘海健钟德文李高明李建军郎延记

李卓非孙志强王海涛田树玲冯俊成武强陈振溢王弼栋

贾鹏云范明李晓军尹超王志芬吕行

本规程主要审查人员：卜志强孟凡龙卢希峰雷毅民毕欣刘明李艳涛
