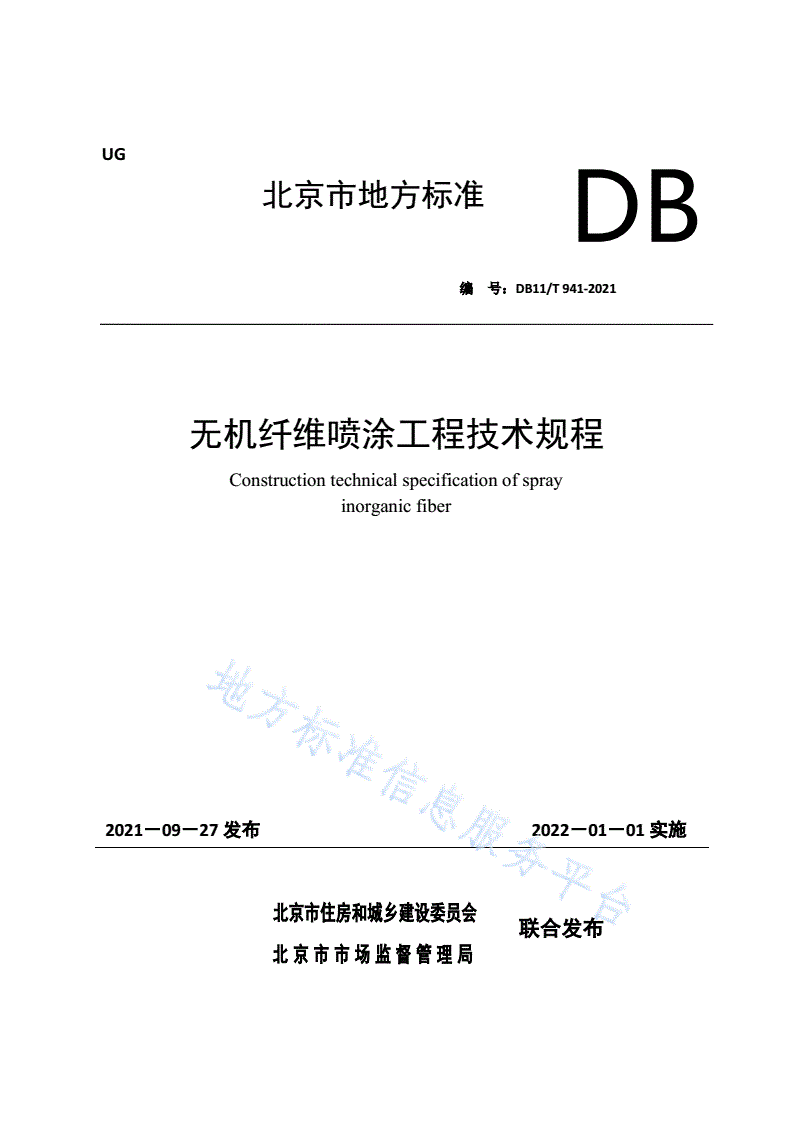

DB11/T 941-2021 无机纤维喷涂工程技术规程

UG

北京市地方标准

DB

编号：DB11/T941-2021

无机纤维喷涂工程技术规程

Constructiontechnicalspecificationofspray

inorganicfiber

2021－09－27发布2022－01－01实施

北京市住房和城乡建设委员会

联合发布

北京市市场监督管理局

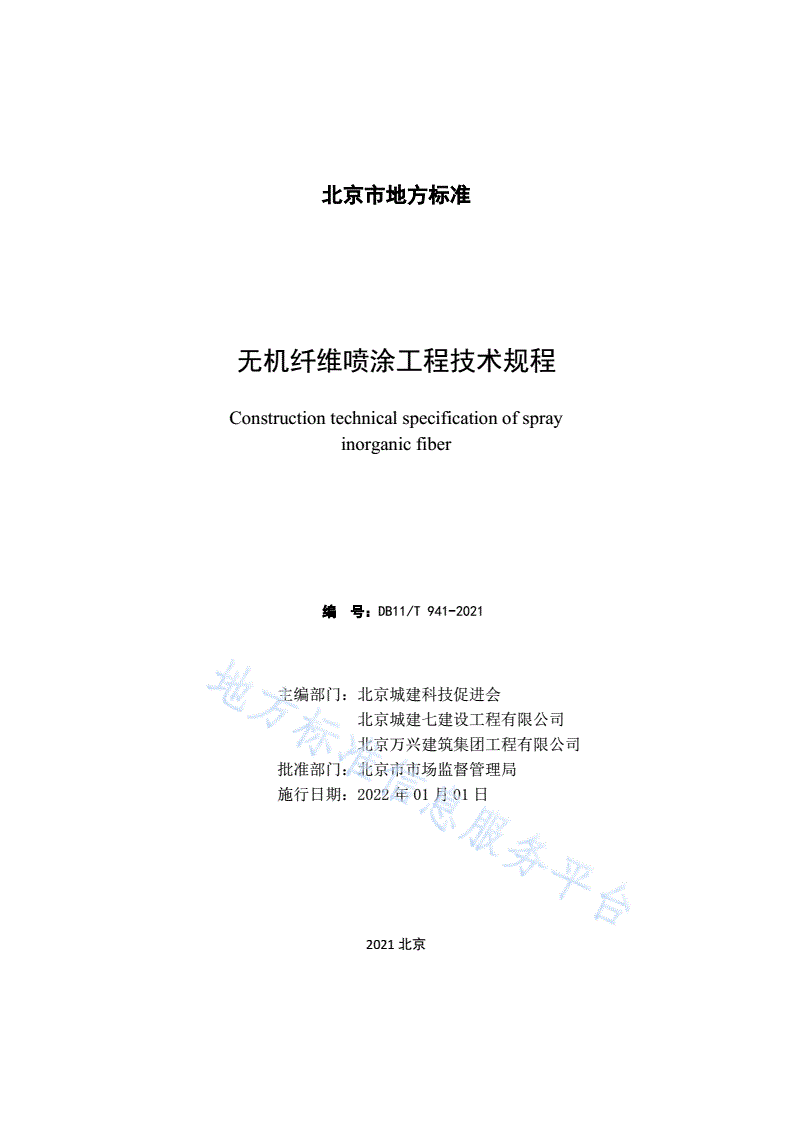

北京市地方标准

无机纤维喷涂工程技术规程

Constructiontechnicalspecificationofspray

inorganicfiber

编号：DB11/T941-2021

主编部门：北京城建科技促进会

北京城建七建设工程有限公司

北京万兴建筑集团工程有限公司

批准部门：北京市市场监督管理局

施行日期：2022年01月01日

2021北京

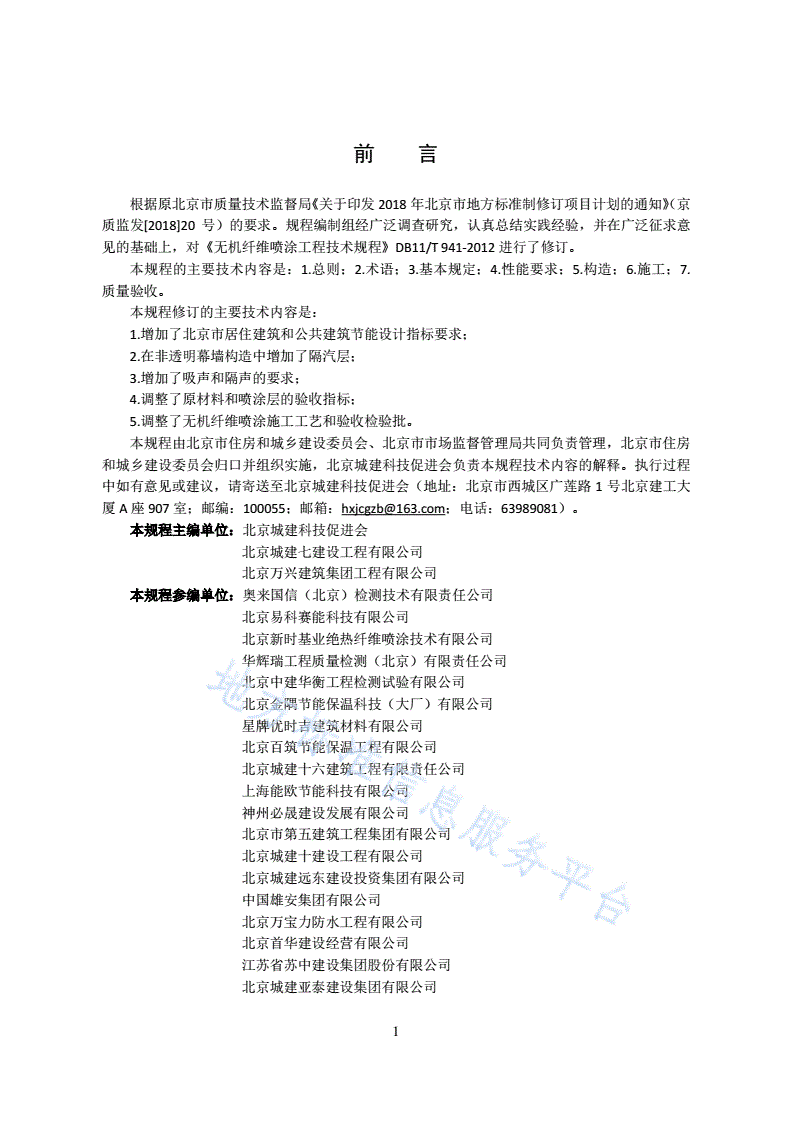

前言

根据原北京市质量技术监督局《关于印发2018年北京市地方标准制修订项目计划的通知》（京

质监发[2018]20号）的要求。规程编制组经广泛调查研究，认真总结实践经验，并在广泛征求意

见的基础上，对《无机纤维喷涂工程技术规程》DB11/T941-2012进行了修订。

本规程的主要技术内容是：1.总则；2.术语；3.基本规定；4.性能要求；5.构造；6.施工；7.

质量验收。

本规程修订的主要技术内容是：

1.增加了北京市居住建筑和公共建筑节能设计指标要求；

2.在非透明幕墙构造中增加了隔汽层；

3.增加了吸声和隔声的要求；

4.调整了原材料和喷涂层的验收指标；

5.调整了无机纤维喷涂施工工艺和验收检验批。

本规程由北京市住房和城乡建设委员会、北京市市场监督管理局共同负责管理，北京市住房

和城乡建设委员会归口并组织实施，北京城建科技促进会负责本规程技术内容的解释。执行过程

中如有意见或建议，请寄送至北京城建科技促进会（地址：北京市西城区广莲路1号北京建工大

厦A座907室；邮编：100055；邮箱：hxjcgzb@163.com；电话：63989081）。

本规程主编单位：北京城建科技促进会

北京城建七建设工程有限公司

北京万兴建筑集团工程有限公司

本规程参编单位：奥来国信（北京）检测技术有限责任公司

北京易科赛能科技有限公司

北京新时基业绝热纤维喷涂技术有限公司

华辉瑞工程质量检测（北京）有限责任公司

北京中建华衡工程检测试验有限公司

北京金隅节能保温科技（大厂）有限公司

星牌优时吉建筑材料有限公司

北京百筑节能保温工程有限公司

北京城建十六建筑工程有限责任公司

上海能欧节能科技有限公司

神州必晟建设发展有限公司

北京市第五建筑工程集团有限公司

北京城建十建设工程有限公司

北京城建远东建设投资集团有限公司

中国雄安集团有限公司

北京万宝力防水工程有限公司

北京首华建设经营有限公司

江苏省苏中建设集团股份有限公司

北京城建亚泰建设集团有限公司

1

本规程主要起草人：杨永起檀春丽张敏黄亚吕豪贾兰琴靳颖徐江峰

赵文娟杜建江李栋学王震田子剑王正华迟梅君房福明

张晓燕米倩杨永波孙建周建权康靖李大维李凤君

唐培新胡爱清邵明章魏巍邵珺王力宋宁刘焱

李超刚刘鑫于海峰张泽沛高华田宝生杜凤刚王帅

王兵张皎耿小康张颖张佳玉徐志

本规程主要审查人：侯建群路国忠汤德芸胡瑞深孔祥荣宗兆民李金元

2

目次

1总则················································································································1

2术语················································································································2

3基本规定··········································································································3

4性能要求··········································································································5

5构造················································································································7

6施工················································································································9

6.1一般规定····································································································9

6.2施工准备····································································································9

6.3墙体工程无机纤维喷涂系统施工····································································10

6.4顶棚工程无机纤维喷涂系统施工····································································11

6.5非透明幕墙无机纤维喷涂系统施工·································································11

7质量验收········································································································12

7.1一般规定··································································································12

7.2主控项目··································································································12

7.3一般项目··································································································12

本标准用词说明···································································································14

引用标准名录······································································································15

附：条文说明······································································································16

3

Contents

1Generalprovisions······························································································1

2Terms··············································································································2

3Basicrequirement·······························································································3

4Technicalrequirement·························································································5

5Constructivedesign·····························································································7

6Construction······································································································9

6.1Generalrequirement························································································9

6.2Constructionmachinesandtools··········································································9

6.3Constructionofinorganicfibersprayonwallbody···················································10

6.4Constructionofinorganicfibersprayoncanopy······················································11

6.5Constructionofinorganicfibersprayonnontransparentcurtain···································11

7Qualityacceptance····························································································12

7.1Generalrequirement······················································································12

7.2Keyitems···································································································12

7.3Ordinaryitems·····························································································12

Explanationofwordinginthisstandard···································································14

Listofquotedstandards·······················································································15

Addition:Explanationofprovisions··········································································16

4

1总则

1.0.1为规范无机纤维喷涂工程的技术要求，保证工程施工质量，满足节能环保、经济合理、防火

安全，制定本规程。

1.0.2本规程适用于建筑工程中无机纤维喷涂工程的设计、施工和质量验收。

1.0.3无机纤维喷涂工程的设计、施工与验收除应符合本规程外，尚应符合国家及北京市现行有关

标准的规定。

1

2术语

2.0.1无机纤维喷涂sprayinorganicfiber

将无机纤维与粘结剂或固化剂通过喷涂设备喷涂于建筑基层表面，形成喷涂层的工艺。

2.0.2无机纤维喷涂系统spraysystemofinorganicfiber

无机纤维喷涂由基层、隔汽层（需要时）、界面层、无机纤维喷涂层、防护层构成的系统。

2.0.3硬质无机纤维喷涂层（矿物纤维喷涂层）hardnessinorganicfiberspray–appliedinsulationlayer

采用无机纤维、粘结剂和粉状固化剂喷涂在基层表面形成喷涂层。

2.0.4软质无机纤维喷涂层（矿物纤维喷涂层）softnessinorganicfiberspray–appliedinsulationlayer

采用无机纤维、粘结剂喷涂到基础表面形成的喷涂层。

2.0.5防护层protectionlayer

对无机纤维喷涂层起增强、防潮和装饰作用的构造层。

2

3基本规定

3.0.1无机纤维喷涂工程传热系数应符合现行地方标准《居住建筑节能设计标准》DB11/891和《公

共建筑节能设计标准》DB11/687的规定，并应符合表3.0.1-1、3.0.1-2、3.0.1-3、3.0.1-4的规定。

表3.0.1-1居住建筑传热系数限值[W/（㎡·K）]

分类1.0＜外表系数≤1.50外表系数≤1.0

外墙（主断面）0.230.35

不采暖地下室顶板0.450.45

架空或外挑楼板0.250.37

分隔供暖与非供暖空间隔墙、分户楼板1.501.50

表3.0.1-2甲类公共建筑传热系数限值[W/（㎡·K）]

分类体形系数≤0.30.3＜体形系数≤0.4

维护结构部位平均主断面平均主断面

外墙构造1构造2构造3构造1构造2构造3

0.500.45

（非透明幕墙）0.450.420.380.410.380.35

架空或外挑楼板0.500.45

不采暖地下室顶板0.500.50

供暖房间与有外围护结构非供

1.501.50

暖房间或空间之间的隔墙

表3.0.1-3乙类公共建筑传热系数限值[W/（㎡·K）]

分类体形系数≤0.30.3＜体形系数≤0.5

维护结构部位平均主断面平均主断面

外墙构造1构造2构造3构造1构造2构造3

0.450.40
