T/CSMT-YB 009-2024 转速传感器二次仪表检测规程

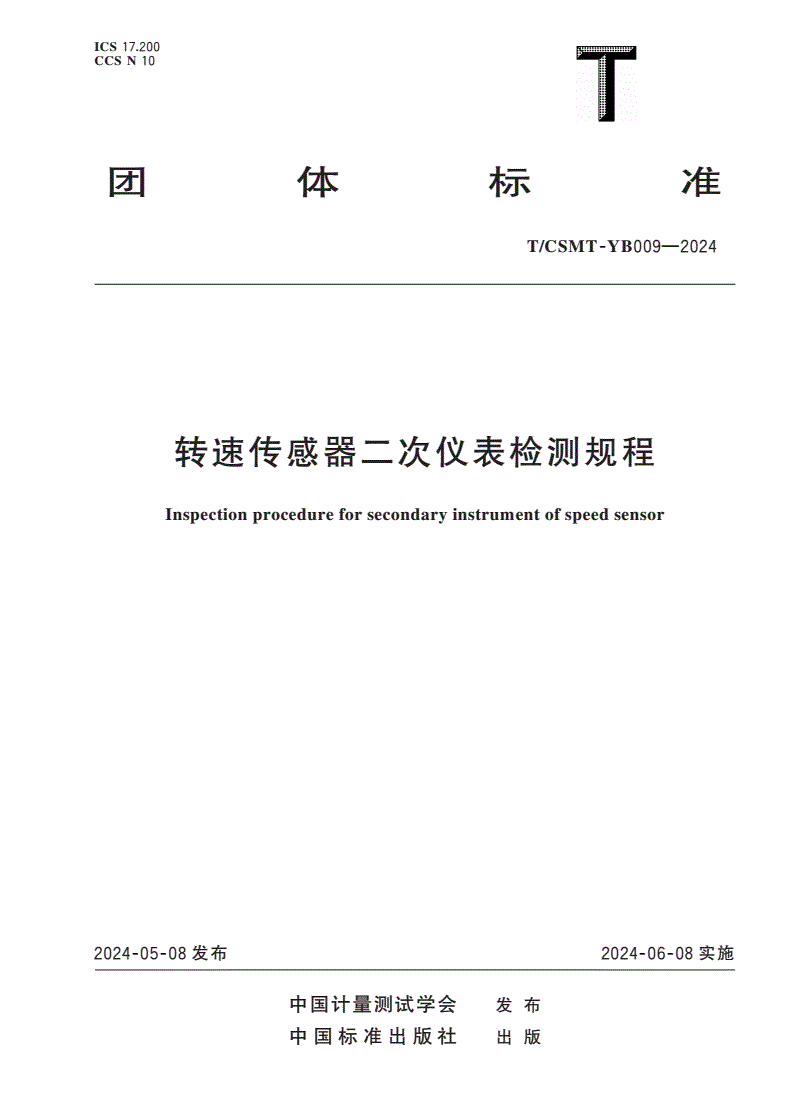

ICS17.200

CCSN10

团体标准

T/CSMT⁃YB009—2024

转速传感器二次仪表检测规程

Inspectionprocedureforsecondaryinstrumentofspeedsensor

2024⁃05⁃08发布2024⁃06⁃08实施

中国计量测试学会发布

中国标准出版社出版

T/CSMT⁃YB009—2024

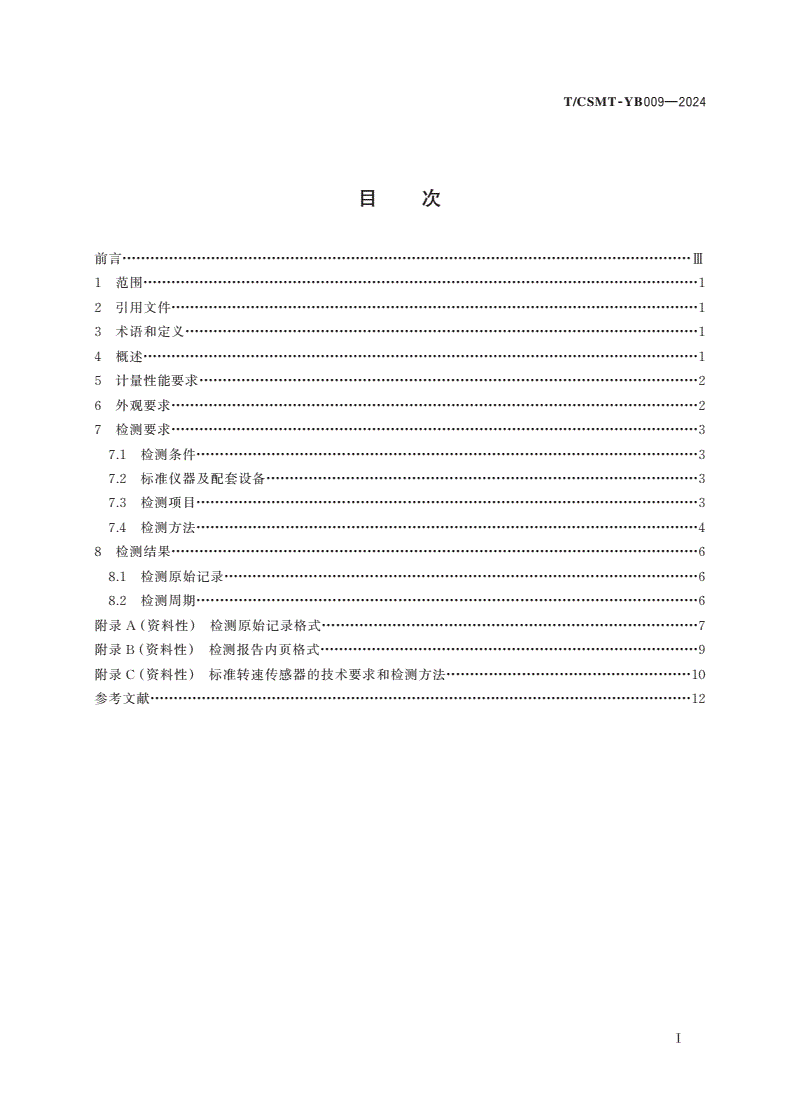

目次

前言··························································································································Ⅲ

1范围·······················································································································1

2引用文件·················································································································1

3术语和定义··············································································································1

4概述·······················································································································1

5计量性能要求···········································································································2

6外观要求·················································································································2

7检测要求·················································································································3

7.1检测条件···········································································································3

7.2标准仪器及配套设备····························································································3

7.3检测项目···········································································································3

7.4检测方法···········································································································4

8检测结果·················································································································6

8.1检测原始记录·····································································································6

8.2检测周期···········································································································6

附录A（资料性）检测原始记录格式················································································7

附录B（资料性）检测报告内页格式·················································································9

附录C（资料性）标准转速传感器的技术要求和检测方法····················································10

参考文献····················································································································12

Ⅰ

T/CSMT⁃YB009—2024

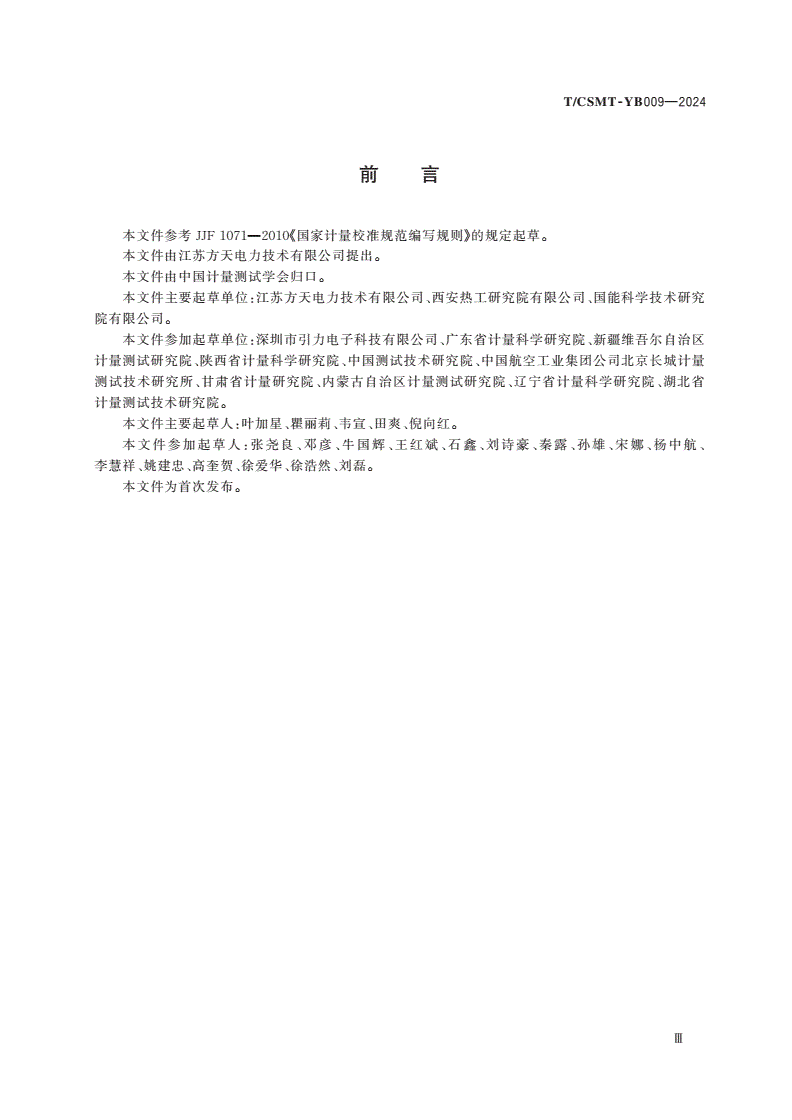

前言

本文件参考JJF1071—2010《国家计量校准规范编写规则》的规定起草。

本文件由江苏方天电力技术有限公司提出。

本文件由中国计量测试学会归口。

本文件主要起草单位：江苏方天电力技术有限公司、西安热工研究院有限公司、国能科学技术研究

院有限公司。

本文件参加起草单位：深圳市引力电子科技有限公司、广东省计量科学研究院、新疆维吾尔自治区

计量测试研究院、陕西省计量科学研究院、中国测试技术研究院、中国航空工业集团公司北京长城计量

测试技术研究所、甘肃省计量研究院、内蒙古自治区计量测试研究院、辽宁省计量科学研究院、湖北省

计量测试技术研究院。

本文件主要起草人：叶加星、瞿丽莉、韦宣、田爽、倪向红。

本文件参加起草人：张尧良、邓彦、牛国辉、王红斌、石鑫、刘诗豪、秦露、孙雄、宋娜、杨中航、

李慧祥、姚建忠、高奎贺、徐爱华、徐浩然、刘磊。

本文件为首次发布。

Ⅲ

T/CSMT⁃YB009—2024

转速传感器二次仪表检测规程

1范围

本文件规定了转速传感器二次仪表的计量性能和技术要求以及检测要求、检测结果等。

本文件适用于0.05级、0.1级、0.5级、1级的转速传感器二次仪表的检测。

2引用文件

下列文件中的内容通过文中的规范性引用而构成本文件必不可少的条款。其中，注日期的引用文

件，仅该日期对应的版本适用于本文件；不注日期的引用文件，其最新版本（包括所有的修改单）适用于

本文件。

GB/T13639—2008工业过程测量和控制系统用模拟输入数字式指示仪

JJG105—2019转速表

3术语和定义

下列术语和定义适用于本文件。

3.1

转速传感器二次仪表secondaryinstrumentofspeedsensor

一种将转速传感器输入电脉冲信号进行计数测量并显示输出转速量值的装置。

3.2

上切换值high⁃switchingvalue

输入转速电脉冲信号频率上升时，使仪表产生的控制或报警信号发生变化时的转速值。

3.3

下切换值low⁃switchingvalue

输入转速电脉冲信号频率下降时，使仪表输出信号发生变化时的转速值。

3.4

切换差differentialgap

同一设定点上切换值和下切换值之差。

[来源：JJG544—2011，3.7]

4概述

转速传感器二次仪表包括信号处理单元、计数测速单元、显示单元、D/A转换单元、数据比较单

元、继电开关等。其典型结构原理框图如图1所示。

1
